The Mid Engined Turbo Triumph Spitfire

Audi 1.8 Turbo 20V AWT 480 bhp

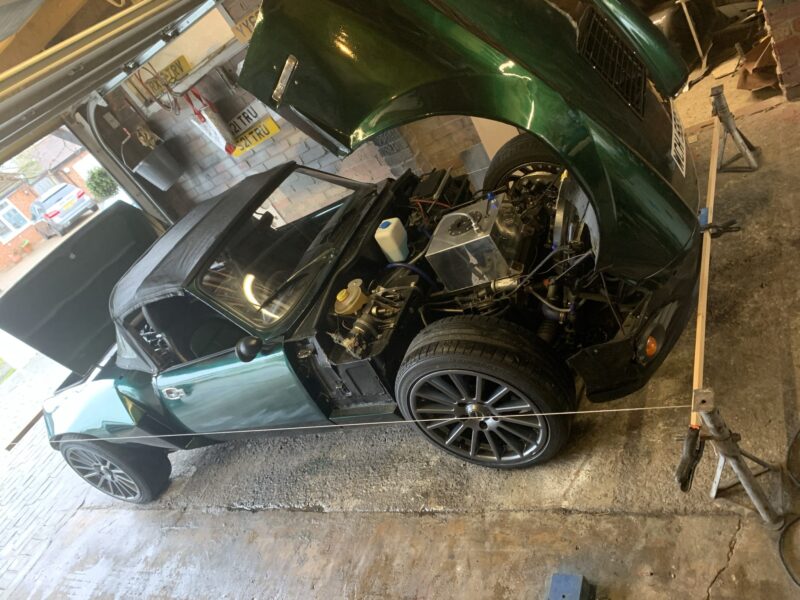

Mid Engined Spitfire Specs

Mid Engined Spitfire Specs

1978 1500 Spitfire body and chassis

Engine

  • Audi 1.8 Turbo 20 Valve AWT 4 cylinder engine
  • AGU big port cylinder head
  • AEB big port inlet manifold
  • BAM 20mm wrist pin pistons
  • MaXSpeedingRODS forged H-Beam con rods, ARP bolts

Gearbox

  • Audi 012 ENW 5 speed manual gearbox (Audi 1.9tdi gearbox)
  • Final drive 3.7
  • 1st Gear 3.5
  • 2nd Gear 1.944
  • 3rd Gear 1.226
  • 4th Gear 0.838
  • 5th Gear 0.683
  • Universal limited slip differential

Clutch

  • CG Motorsport stage 2 Clutch Kit for Audi A4- B5 1.8 Turbo AWT Engine code

Stage 2 Clutch Kit for Audi A4- B5 1.8 Turbo 150BHP AEB / ANB / APU / ARK / AWT Engine code

  • Lockheed remote servo
  • Range Rover electronic brake booster vacuum pump

Engine management

  • Bosch ME7.5 ECU (8N0906018H) immobilised, mapped to 480 bhp by Lewis Battersby
  • SAI delete, N249 delete, N112 delete, Second 02 delete, evap delete to catch can, vent to air

Dashboard and cluster

  • Solid Ash one piece dashboard
  • VW Passat B5 immo3 cluster

Induction & fueling

  • 4 branch tube stainless steel exhaust manifold
  • Pulsar PSR4849G – G25 550 Turbocharger
  • Bosch 044 Fuel pump
  • 3bar – 630 cc/min fuel injectors
  • 5 Gallon Alloy foam filled fuel cell, GM Fuel sensor
  • Adjustable fuel pressure regulator and after market alloy fuel rail set at 3 bar
  • Devil’s Own methanol and water injection (50/50)

Wheels

  • Oz Designed MSW wheels
    • Rear: 17×8 et35 225/40 r 17 – Michelin Pilot Sport 4
    • Front 17×7 et45 205/40 r 17 –  Michelin Pilot Sport 4

Front suspension/brakes

  • Gaz Gold fully adjustable Spitfire shock absorbers
  • Spitfire uprights and hubs, cloned with Audi A4 hubs
  • 290mm Audi A4 vented discs
  • BMW series 1 brake callipers
  • Conley Classic fully adjustable upper wishbones

Rear Suspension/brakes

  • Audi A6 rear hubs
  • 288mm Audi A4 discs and A6 callipers
  • Gaz Gold fully adjustable Lotus Elise S1 shock absorbers
  • Audi TT rear anti roll bar

Seats

  • Mazda MX5 MK1 Gleneagles Leather Seats
