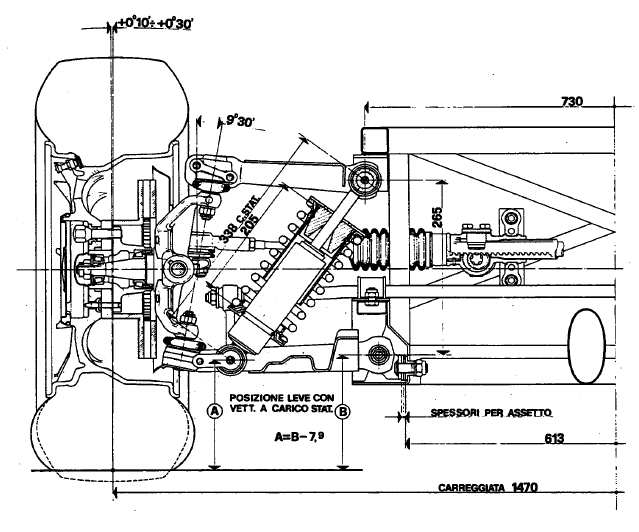

Wheel bearings |
Taper roller type |
|
Bearing axial play |
0.06 +- 0.10 mm |
|
Bearings lubrication |
AGIP F1 33FD |
|
Car in static load conditions |
Full of fuel, 2 persons and 20 kg of luggage. |
|
Suspension springs |
|
|
Free length of spring |
349 mm |
|
Static load |
450 kg |
|
Spring length under static load |
205 mm |
|
Wire diameter |
12.5 mm |
|
Inner diameter |
mm. 77,5 |
|
Flexibility |
mm/kg. 0.32 |
|
Helical direction |
Right |
|
Total spring turns |
Nt. 12.75 |
WARNING ‑ The springs are graded according to their load and are marked by different coloured turns. The assembling must be done with matched springs having equal reference.
|
Shock absorbers Type |
KONI 82x – 1830 |
Rear Suspension
|
Type |
independent wheels with coil springs and hydraulic shook absorbers. |
|
Stabilizer bar |
Transversal, fitted on rubber pads |
|
Diameter |
11.5 mm |
|
Upper and lower wishbones |
|
|
Connection to chassis |
By forks and flexible bearings (Fland Block) |
|
Connection to levers mounting |
By flexible bushings - self‑lubricating type |
|
wheels |
|
|
Camber angle |
Min. ‑1°28’ + Max. ‑1°40' |
|
Camber angle measured on wheel rim |
Min. 8.6 and Max 10.75 mm |
|
Adjustment of wheel camber |
by shims |
|
Toe‑in |
2 ~ 4 mm |
|
Toe‑in adjustment |
by shims |
|
Suspension springs |
|
|
Free length of spring |
344 mm |
|
Static load |
390 kg |
|
Spring length under static load |
227 mm |
|
Wire diameter |
12.5 mm |
|
Inner diameter |
77.5 mm |
|
Flexibility |
mm.kg. 0.3 |
|
Helical direction |
Right |
|
Shock absorbers |
KONI 82x ‑ 1831 |
